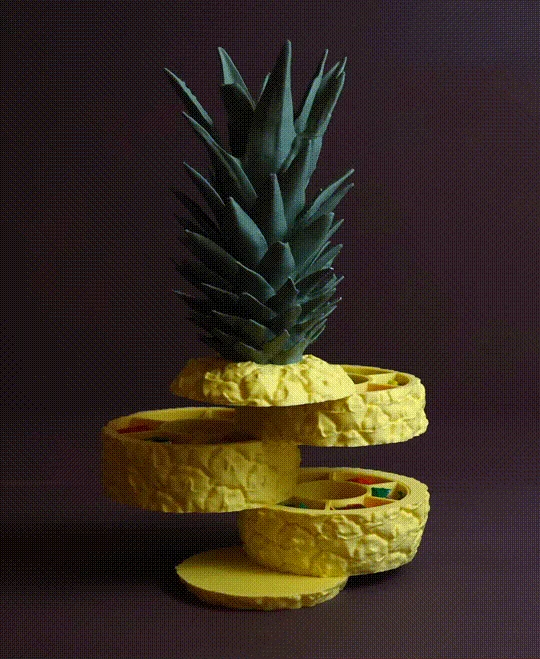

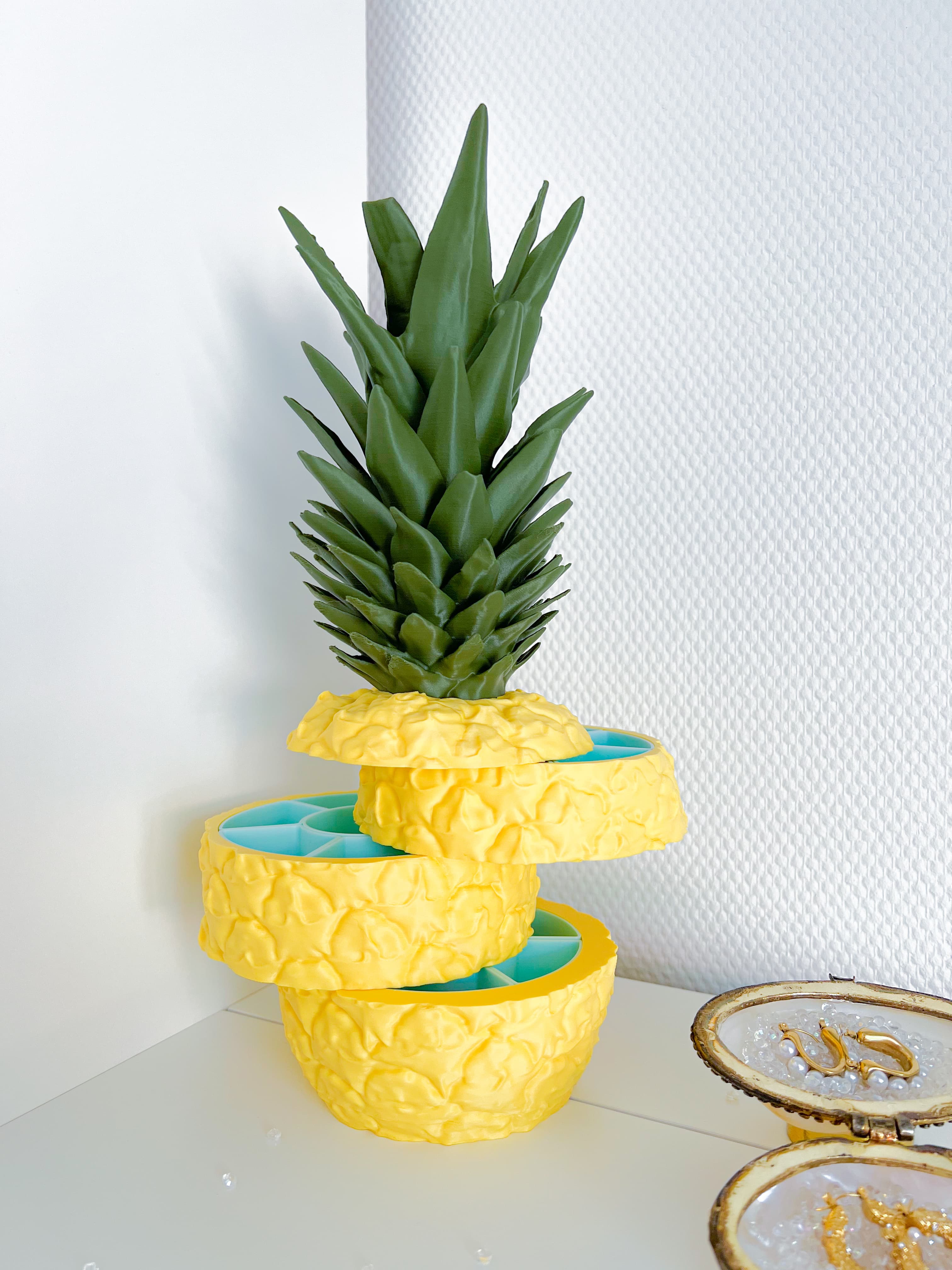

A real Pineapple turned organizer. Store jewelry, candy or whatever you like in this extraordinary Ananas.

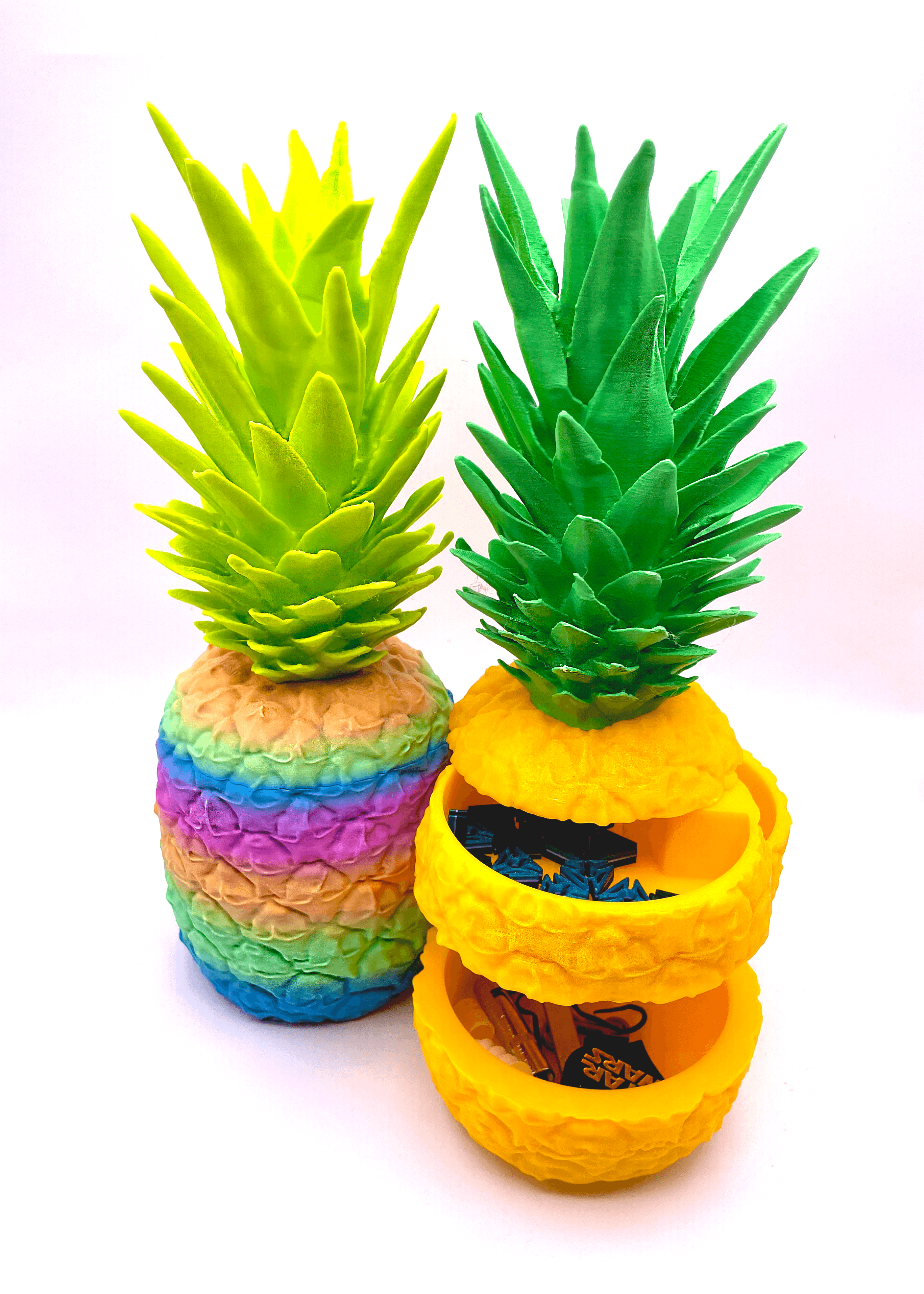

The design comes in two version. One simple storage container (A) and one where every level has its own slice-like containers for elaborate organization (B).

Instructions A

• Print all three parts
• Glue the green into the top

Instructions B

• Print all parts once except for the compartments. You need 5 of them each.
• Glue the rod into slice 1
• Insert slice 2,3 and 4
• Glue the green into slice 5
• Insert slice 5 onto the rod – you should use glue here but be aware that you will not be able to disassemble it afterwards.

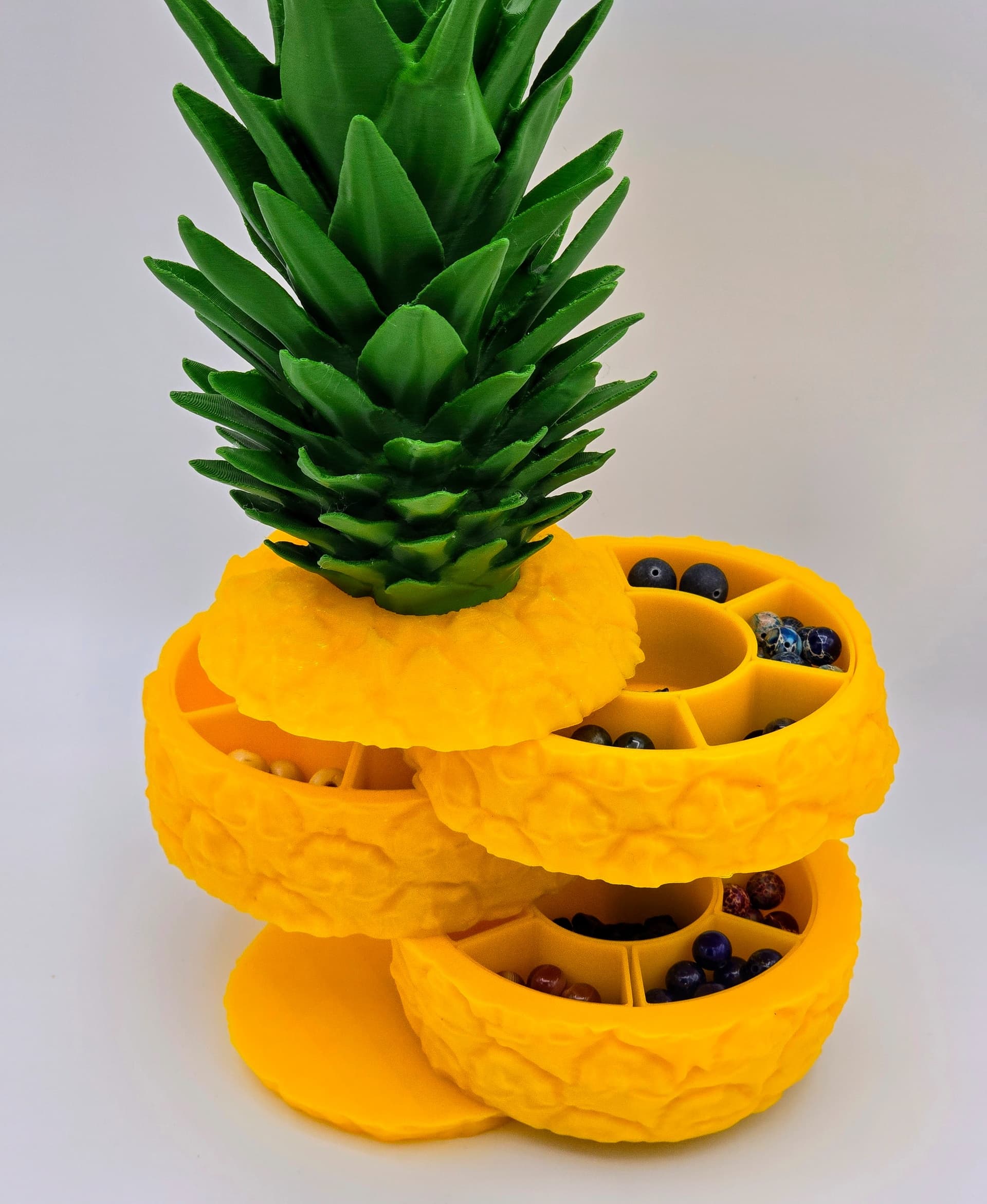

The slices lock into position. The only open to one side. Do not try to force them to open to the other side or you might damage the object.

Size assembled: 126 x 126 x 321 mm

Print settings Required build volume: 150 x 150 x 190 mm Material usage A: 400 g Material usage B: 650 g

Material: PLA Print direction: stls are rotated correctly, check images Support: none Nozzle size: 0,4 mm Line width: 0,4 mm Layer height 0,2 mm Infill: 15% Build plate adhesion type: none
